Smooth trigger action...
throughout the range


CAM RESLING SERVICE



OMEGA PACIFIC
LINK CAMS discontinued

Imagine having a single SLCD with an expansion range equal to 3-5 of your current cams. Just what you want when you are pumped at the crux or not sure what to rack up with for that next back country route.

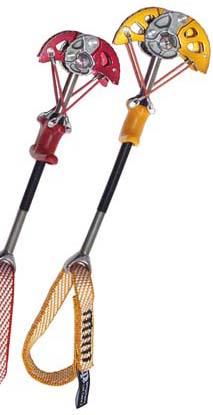

This new invention of Greg Lowe's (LoweCams, TriCams and a ton of other neat hardware) is based on the proven single axle, constant 13.5 degree cam for optimum placement strength and reliability. With Greg's LINK CAM design each individual cam lobe is comprised of 3 segments or links - inner, middle and outer. Which link engages with the rock depends on the size of the crack... retract all the way and the inner link supports the load. When placed with the middle or inner link engaged, the outer link(s) serve as "outriggers" reducing the potential for your LINK CAM to "walk" deeper in the crack or out of place. Nice. LINKS conform better to flared cracks and pockets too - again due to their awesome expansion range of each trio of "links". Inner two cam segments are metal injection molded 17-4 stainless steel for strength and durability, outer links are anodized 7000 series aluminum for lightness and quick i.d. Fitted with plastic sheathed trigger control wires and a 4" Dyneema sling.

Set #05-2 (4pcs)



LINK CAM full set: #.5-2 (4 units)
price: discontinued


no
size-range
size-range
wt
wt
width
width
strength
color
price

inches
mm
oz
gm
in
mm
kN
lbf

.5
.530-1.38
13.5-35.0
3.4
95
1.75
63
8
1800
purple
na
.75
.700-1.75
17.8-44.5
4.0
113
1.87
63
10
2250
green
na
1
.830-2.10
21.1-53.3
6.2
176
2.25
63
14
3150
red
na
2
.960-2.51
25.4-64.0
7.3
207
2.25
63
14
3150
gold
na
